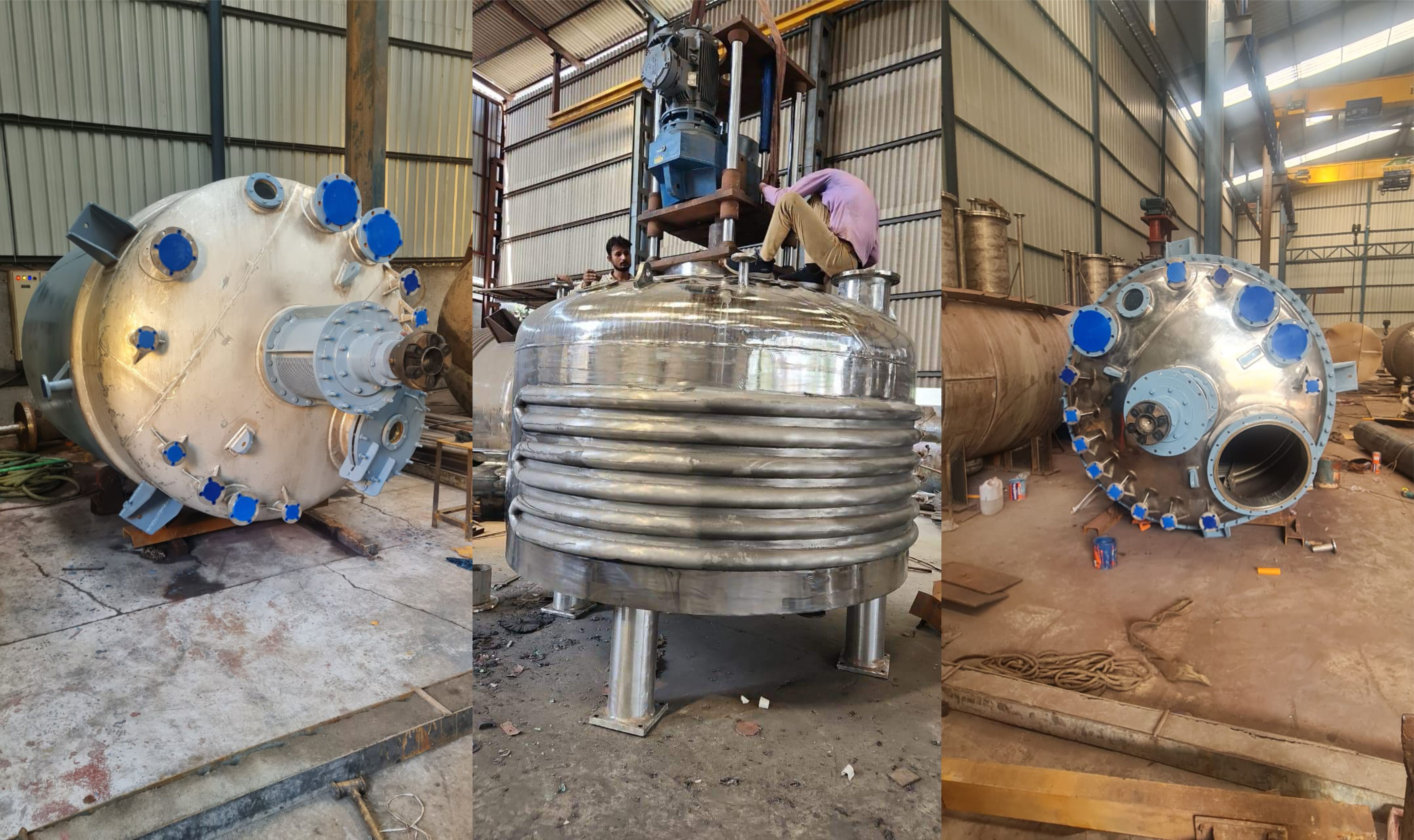

We are instrumental in producing a wide range of industrial reactors
that serve diverse industrial requirements. Specially used for chemical and pharmaceutical Industries, these industrial reactors are fabricated to accuracy using quality material. We have been manufacturing a comprehensive assortment of Vertical Reactors that can be constructed either in M.S or S.S. Stirrer like Anchor, Propeller, Turbine etc with different RPM are provided as per customer’s requirement.
REACTION VESSEL TYPES AND ITS APPLICATIONS:
| REACTION VESSEL TYPES | APPLICATIONS |
|---|---|
| Jacketed Reactors | Fertilizers |
| Limpet Coiled Reactors | Food And Dairy |
| Internal Coil Reactors | PetroChemical |
| M.S Lead Bonded Reactors | Pulp And Paper |
REACTION VESSEL TYPES AND ITS APPLICATIONS:
| REACTION VESSEL SPECIFICATION DATA SHEET | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity in Ltr. | SHELL | DIST | SHAFT | I/D | HEATING/ COOLING SYSTEM | No. of Shell | No. of Dish | Motor | Gear | ||||||
| I/D | HEIGHT | THK | THK | Jacketed | LIMPET | THK | |||||||||
| HEIGHT | THK | THK | (NB) | (SCH) | |||||||||||
| 1000 | 1020 | 1250 | 6 | 8 | 60 | 1120 | 1100 | 6 | 8 | 65 | 40 | 8 | 3 | 5 | V.400 |
| 2000 | 1310 | 1500 | 6 | 8 | 65 | 1410 | 1300 | 6 | 8 | 65 | 40 | 10 | 4 | 7.5 | V.500 |
| 3000 | 1500 | 1700 | 6 | 8 | 70 | 1600 | 1500 | 8 | 10 | 65 | 40 | 11 | 5 | 7.5 | V.600 |
| 4000 | 1600 | 2000 | 6 | 8 | 75 | 1700 | 1800 | 8 | 10 | 65 | 40 | 14 | 5.5 | 10 | V.600 |
| 5000 | 1690 | 2250 | 6 | 8 | 85 | 1790 | 2100 | 8 | 10 | 65 | 40 | 16 | 6 | 12.5 | V.600 |
| 8000 | 2020 | 2500 | 8 | 10 | 90 | 2120 | 2300 | 10 | 12 | 80 | 40 | 16 | 6 | 15 | V.700 |
| 10000 | 2260 | 2500 | 8 | 10 | 100 | 2360 | 2300 | 10 | 12 | 80 | 40 | 16 | 6.5 | 15 | V.700 |
| 12000 | 2380 | 2700 | 8 | 10 | 110 | 2480 | 2500 | 10 | 12 | 80 | 40 | 17 | 7 | 20 | V.800 |
| 15000 | 2530 | 3000 | 10 | 12 | 120 | 2630 | 2750 | 12 | 14 | 80 | 40 | 20 | 8 | 25 | V.1000 |
| 20000 | 2610 | 3750 | 10 | 12 | 120 | 2630 | 2750 | 12 | 14 | 80 | 40 | 25 | 8 | 30 | V.1200 |
| 25000 | 2800 | 4100 | 12 | 14 | 130 | 2900 | 3300 | 12 | 14 | 80 | 40 | 27 | 10 | 30 | V.1200 |
